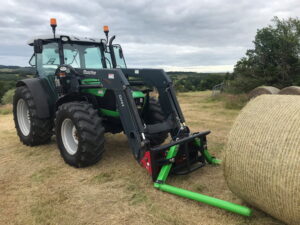

Bale Lifters (Tines In Rollers)

The LWC Bale Lifter is built for versatile bale handling, making it easy to transport wrapped round bales as well as round or square straw bales. Its removable rollers quickly reveal 1100mm-long tines for secure handling of unwrapped bales. A double-acting hydraulic ram provides smooth operation and ensures bales are carried safely and securely.



  • Twin rotating removable rollers
    Smooth, heavy-duty rollers rotate to protect delicate bale wrap during loading and transport. When needed, simply remove the rollers to reveal SHW tines for handling unwrapped bales.

  • Quick-change latch system
    Rollers can be swiftly detached thanks to a practical manual latch, allowing seamless transitions between handling wrapped silage and straw or hay bales.

  • Versatile bale handling
    Suitable for round wrapped silage bales as well as round or square straw bales, offering a single, reliable tool for diverse bale types.

  • Protects bale value
    Roller surfaces help prevent punctures or tears in bale wrap, preserving the bale quality.

  • Optimal tine length
    Tines measure 1100 mm exposed length when rollers are removed, giving secure penetration and stability for larger bales.

  • UK-manufactured quality
    Produced entirely in-house at LWC’s facilities, ensuring exceptional quality control.

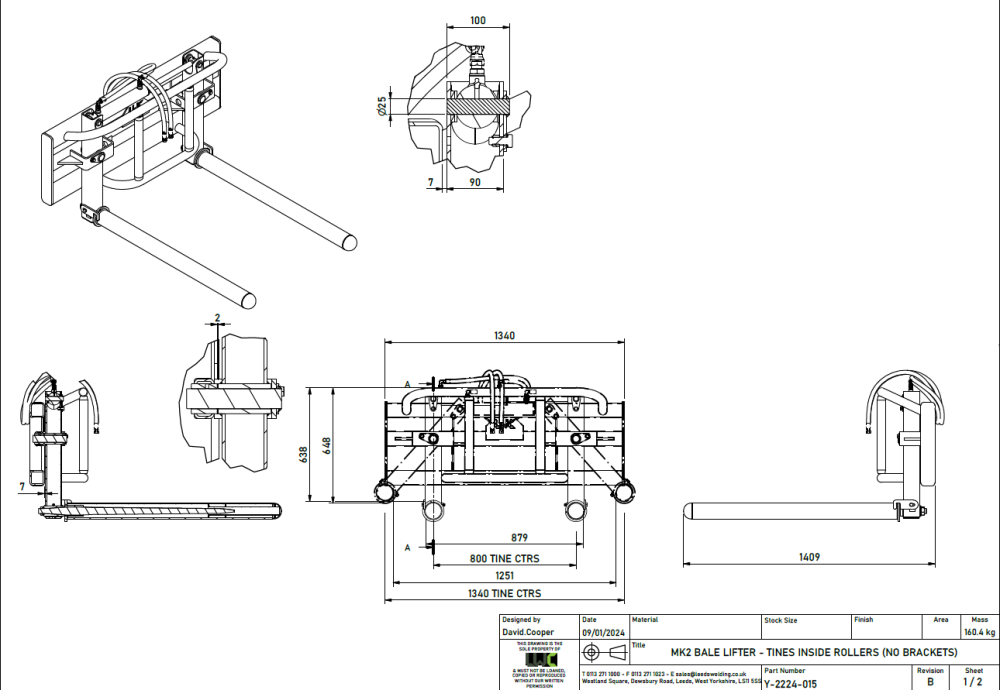

Technical Specifications

Model Description Capacity Open Width Closed Width Weight
BH1 Bale Lifter 1100kg 1250mm 710mm 160kg

Price:

POA

Reference ID: 4003

Need Spares?

Contact our parts division directly for component pricing and availability.
