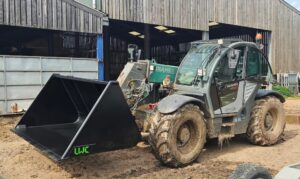

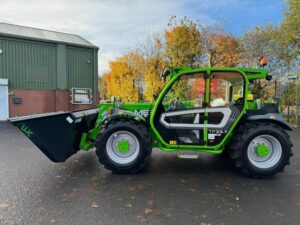

LWC Telehandler Buckets

Built for hard work, the LWC Telehandler Bucket is a tough, reliable bucket designed to handle a wide range of bulk materials with ease. Whether you’re shifting grain, muck, aggregates, or general waste, it delivers the strength and capacity you need to keep your operation moving efficiently.

Key Features:

Robust Construction: Built from high-grade structural steel, the bucket features reinforced side plates and a heavy-duty wear edge for long-term resilience in demanding environments.
High-Capacity Design: With a variety of widths and capacities available (from 0.7m³ up to 5.0m³), it’s tailored for efficient rehandling of grain, feed, aggregates, and waste.
Customisable Hitch Options: Supplied with brackets to suit your telehandler make and model, ensuring easy attachment and a secure fit.

Technical Specifications

Model Width Cu Ft Cu Mtr Height Depth

HB5025 5'0” (1.52m) 25 0.71 35” 43”

HB6022 6'0” (1.83m) 22 0.62 30” 37”

HB6030 6'0” (1.83m) 30 0.85 35” 43”

HB6624 6'6" (2.00m) 24 0.68 30” 37”

HB6632 6'6" (2.00m) 32 0.92 35” 43”

HB6643 6'6" (2.00m) 43 1.22 38” 53”

HB7026 7'0” (2.13m) 26 0.74 30” 37”

HB7035 7'0” (2.13m) 35 0.99 35” 43”

HB7047 7'0” (2.13m) 47 1.33 38” 53”

HB7628 7'6" (2.31m) 28 0.79 30” 37”

HB7638 7'6" (2.31m) 38 1.08 35” 43”

HB7650 7'6" (2.31m) 50 1.41 38” 53”

HB7660 7'6" (2.31m) 60 1.70 42” 58”

HB7670 7'6" (2.31m) 70 1.98 45” 62”

HB8040 8'0” (2.46m) 40 1.13 35” 43”

HB8053 8'0” (2.46m) 53 1.50 38” 53”

HB8075 8'0” (2.46m) 75 2.12 45” 62”

HB80100 8'0” (2.46m) 100 2.83 50” 71”

HB86106 8’6” (2.62m) 106 3.02 50” 71”

HB86132 8’6” (2.62m) 132 3.74 57” 78”

HB90140 9’0” (2.75m) 140 3.97 57” 78”

WB90177 9’0” (2.75m) Woodchip 177 5.00 67” 80”

Dimensions are nominal.

Price:

POA

Reference ID: 4004
